Quality product for coil feeding in Press Feeding Lines
Info Specification Video

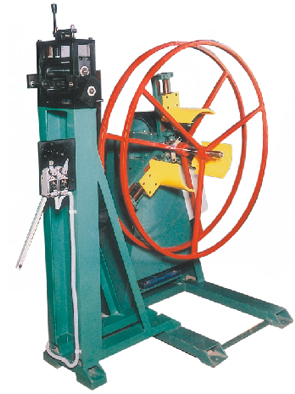

Scrap Coiler
300 kg Scrap Coiler with Winding Arrangement



FEATURES :-

  • Rigid Fabricated Structure.
  • Three / Four Self Centering Coil location jaws with mechanical gear reducer for Model above 2.5 Tonne.
  • The Spindle & Coil holding heads housed in mechanical & précised machined housing & rotates on dust proofed sealed bearing element.
  • All Motorized Coilers are Chain driven Soft START & STOP through mechanical torque limitor & friction drag brake.
  • Drive System : A.C. Fixed Speed / A.C. Variable Speed (Optional).
  • Control Panel with suitable loop control system to maintain loop of coil for the Machine via Antenna type loop sensors / limit arm through limit switches.

OPTIONS :-

  • Tension winding arrangement by set of rollers for tight winding.
  • Electro Magnetic / Pneumatic Brakes.
  • Coil Hold-down (Hydraulic / Pneumatic) for Springy materials.
  • Jaw Expansion by Hydraulics.
  • Coilers with Shafting & Key to load Bobbin.
.......................

TORQUE CONTROLLED WINDER

TORQUE CONTROLLED WINDER

  • Special Purpose Winding Machine.
  • Centrally Expandable Jaws.
  • All Jaws have fully covered drum for best stability.
  • Pneumatically operated hold-down with potentiometer for speed variation & holding the coil with varying pressure with hand-lever.
  • Mandrel rotating on bearings.
  • Precision Tension Coiler & Winders for Strip Casting & Rolling Mills
  • The Spindle would be driven by D.C. Variable Drive with gear-reducer & brake mechanism. D.C. Drive is in constant tension. Speed reduces automatically with diameter build-up for tight winding.
  • The Control Panel would have following standard parameters ;
  • Forward / Reverse Selector.
  • Start / Stop Button.
  • Emergency Shut Off & Hold-down.
  • Speed / Tension Selector.
  • In-built Transformer.
  • Potentiometer to set the Tension manually.
  • Hand-Lever operation for low tension in starting high tension in working.
