Zig Zag Feeder

High Quality Product for in house Coil-processing
Info Layout Zig zag Feeder Specification Video

Typical Layout

NC Servo Zig Zag Feeder
Model SZZ - C1300
Zig Zag Feeder
NC Servo Zig Zag Feeder
Model SZZ - BH400
Pneumatic Zig Zag Feeder
Model PZZ - 100

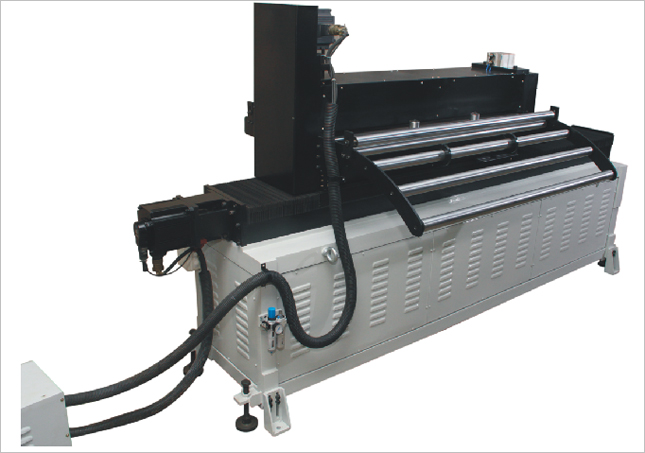

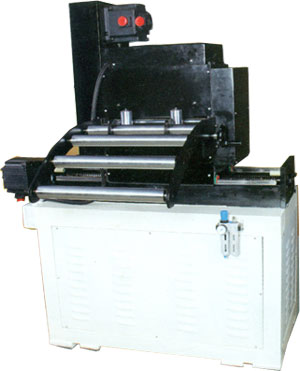

NC Servo Zig Zag Feeder

Designed for blanking out circles, zig/zag servo feeds can be programmed to perform from two to multiple rows / pattern, typically saving at least 8% in material costs.


The feed head is mounted on a base with linear bearing and rails
Coil Width from 100 mm - 1300 mm.
Zig/zag base is incorporated into main cabinet to allow for pass line height adjustments of 100 mm from the mean.
Travel of zig/zag is servo driven on a ball screw.
All zig/zag motion is programmable through the main control.
Accuracy is ± 0.15 mm.
Blanking pattern is calculated based on circle diameter and stock width.
Standard Mitsubishi Servo, Drive, PLC & HMI Package is provided Others on request.

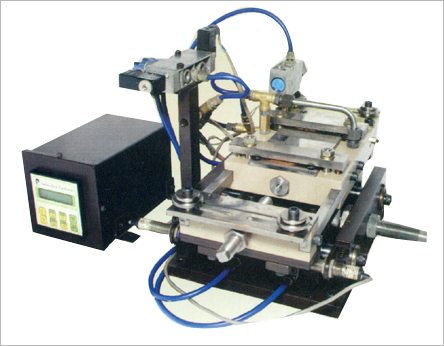

Pneumatic Zig Zag Feeder


Designed for blanking out diameters, pneumatic zig/zag can be adjusted to perform from two blanks, typically saving of 6% in material costs.


The feeder to feed strip is mounted on a pneumatic zig zag feeding mechanism
Coil Width from 100 mm – 300 mm & Thickness from 0.5 – 2.00 mm
Pneumatic zig zag feeding mechanism mounted on a rigid bas has a settable indexing for blanking double  row using single station tool
Pneumatic Zig Zag Feeder is provided with pass line height adjustments of 100 mm from the mean
The Feeder & zig zag feeding mechanism is synchronized with Pneumatics & Electronic Panel & necessary Sensors & End Cushions for smoother Zig Zag indexing with the Press.
Accuracy is ± 0.15 mm

Servo Pneumatic Zig Zag Feeder

offering an econimical solution for Multi Blanking.
Coil Width from 100mm - 300mm & Thickness from 0.5 - 2.00 mm.
