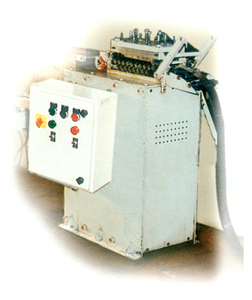

Coil Straightener

Quality product for coil feeding in Press Feeding Lines
Info Specification Video
Coil Openable Straightener head 9 x 50 Dia. Precision Straightener 9 × 50 Dia 150mm (w)
Straightener 9 x 50 mm Dia. 150mm (w) Straightener 7 x 65 DiA 400mm(w)

Straightener


FEATURES
* The units are fabricated from steel and the straightener rolls are properly fixed and    aligned in machine and ground housing.
* One/Two sets of drive pinch rolls are provided as required.
* All the feed Rolls & Bottom Rolls are driven, while Top Rolls have individual    adjustments.
* All the Rolls are made of Special Alloy Steel Material Hardened,  Ground, Chrome    plated & are housed into precision needle bearing sealed at both ends.
* Upper straightening rolls are independently adjustable and  once set, gang    adjustment can be done for repeat operations.
* Gang adjustment of top roller blank for straightener with more number of rolls & for    straightener of lesser thickness range.
* Roll setting scale on side plates/Dial gauges in some models.
* Entry Guides.
* Exit cascade rolls.
* Control Panel with Suitable loop control system to maintainloop  of coil for the    machine via Antenna Type loop Controls /  limit arm through limit Switches.
* Fixed line speed / Variable line speed above 15 Mtr. / min.

OPTIONS
* A.C. variable driven coil straightener are available on request.
* Ultrasonic / photoelectric loop controls.
* Remote pendant control (jog forward / reverse)
* Decoiler - Straightener mounting on common base.
* Inclined head mounting.
* Centralized lubrication system.
* For heavier thickness range,pinch rolls are operated  pneumatically / hydraulically.
* Openable top straightener head blank mechanically or with
   Pneumatic / Hydraulic Cylinder.
.......................
